ERGA ONT+Illumina Assembly+QC NextDenovo+HyPo v2403 (WF2) Version 1
View on GitHub
Download RO-Crate

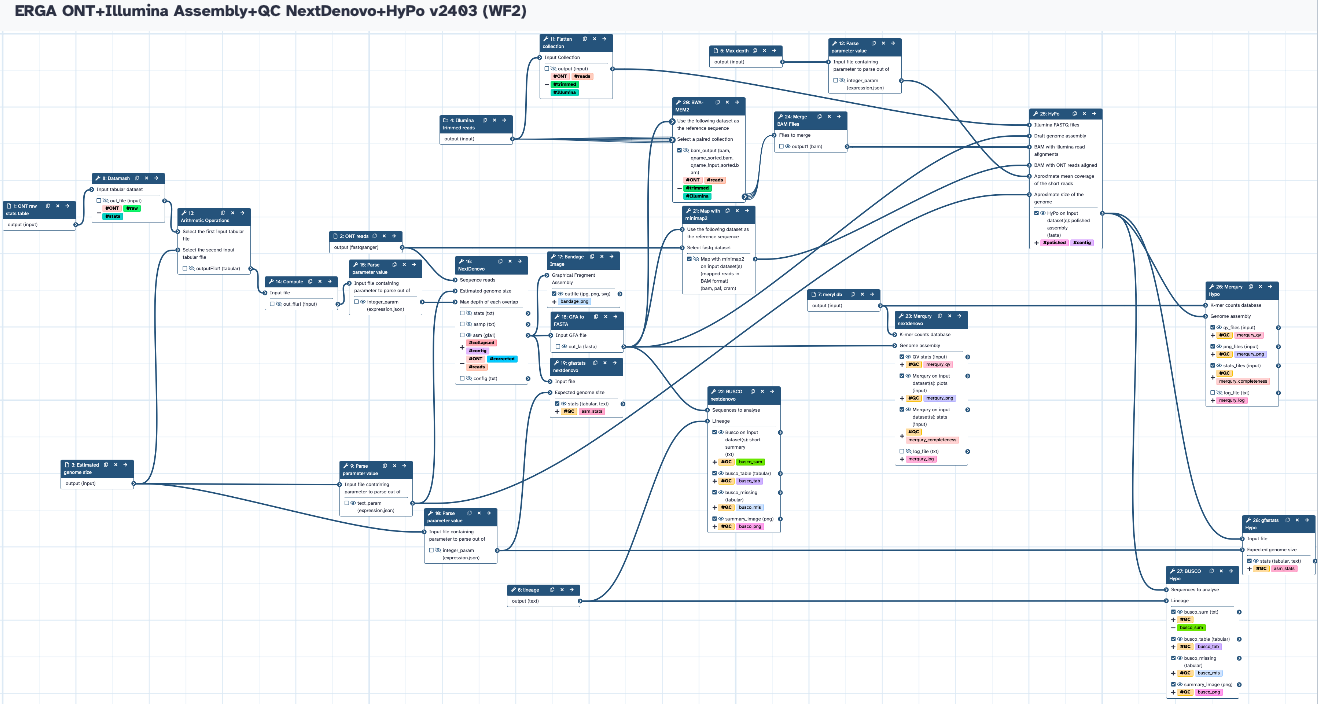

Run on GalaxyThe workflow takes raw ONT reads and trimmed Illumina WGS paired reads collections, the ONT raw stats table (calculated from WF1) and the estimated genome size (calculated from WF1) to run NextDenovo and subsequently polish the assembly with HyPo. It produces collapsed assemblies (unpolished and polished) and runs all the QC analyses (gfastats, BUSCO, and Merqury).
Inputs
| ID | Name | Description | Type |
|---|---|---|---|
| Estimated genome size | Estimated genome size | n/a |
|
| Illumina trimmed reads | Illumina trimmed reads | n/a |
|
| Max depth | Max depth | n/a |
|
| ONT raw stats table | ONT raw stats table | n/a |
|
| ONT reads | ONT reads | fastq file with ONT reads |
|
| lineage | lineage | lineage for BUSCO, e.g.: arthropoda_odb10, vertebrata_odb10, mammalia_odb10... |
|
| meryl db | meryl db | import meryldb to run merqury on the assemblies obtained |
|
Steps
| ID | Name | Description |
|---|---|---|
| 7 | Datamash | toolshed.g2.bx.psu.edu/repos/iuc/datamash_ops/datamash_ops/1.8+galaxy0 |
| 8 | Parse parameter value | param_value_from_file |
| 9 | Parse parameter value | param_value_from_file |
| 10 | Flatten collection | __FLATTEN__ |
| 11 | Parse parameter value | param_value_from_file |
| 12 | Arithmetic Operations | toolshed.g2.bx.psu.edu/repos/devteam/tables_arithmetic_operations/tables_arithmetic_operations/1.0.0 |
| 13 | Compute | toolshed.g2.bx.psu.edu/repos/devteam/column_maker/Add_a_column1/2.0 |
| 14 | Parse parameter value | param_value_from_file |
| 15 | NextDenovo | toolshed.g2.bx.psu.edu/repos/bgruening/nextdenovo/nextdenovo/2.5.0+galaxy0 |
| 16 | Bandage Image | toolshed.g2.bx.psu.edu/repos/iuc/bandage/bandage_image/2022.09+galaxy4 |
| 17 | GFA to FASTA | toolshed.g2.bx.psu.edu/repos/iuc/gfa_to_fa/gfa_to_fa/0.1.2 |
| 18 | gfastats nextdenovo | toolshed.g2.bx.psu.edu/repos/bgruening/gfastats/gfastats/1.3.6+galaxy0 |
| 19 | BWA-MEM2 | toolshed.g2.bx.psu.edu/repos/iuc/bwa_mem2/bwa_mem2/2.2.1+galaxy0 |
| 20 | Map with minimap2 | toolshed.g2.bx.psu.edu/repos/iuc/minimap2/minimap2/2.26+galaxy0 |
| 21 | BUSCO nextdenovo | toolshed.g2.bx.psu.edu/repos/iuc/busco/busco/5.4.6+galaxy0 |
| 22 | Merqury nextdenovo | toolshed.g2.bx.psu.edu/repos/iuc/merqury/merqury/1.3+galaxy2 |
| 23 | Merge BAM Files | toolshed.g2.bx.psu.edu/repos/devteam/sam_merge/sam_merge2/1.2.0 |
| 24 | HyPo | toolshed.g2.bx.psu.edu/repos/iuc/hypo/hypo/1.0.3+galaxy0 |
| 25 | Merqury Hypo | merqury on flye assembly polished with 1 round of hypo toolshed.g2.bx.psu.edu/repos/iuc/merqury/merqury/1.3+galaxy2 |
| 26 | BUSCO Hypo | toolshed.g2.bx.psu.edu/repos/iuc/busco/busco/5.4.6+galaxy0 |
| 27 | gfastats Hypo | toolshed.g2.bx.psu.edu/repos/bgruening/gfastats/gfastats/1.3.6+galaxy0 |
Outputs
| ID | Name | Description | Type |
|---|---|---|---|
| _anonymous_output_1 | _anonymous_output_1 | n/a |
|
| _anonymous_output_2 | _anonymous_output_2 | n/a |
|
| _anonymous_output_3 | _anonymous_output_3 | n/a |
|
| Map with minimap2 on input dataset(s) (mapped reads in BAM format) | Map with minimap2 on input dataset(s) (mapped reads in BAM format) | n/a |
|
| _anonymous_output_4 | _anonymous_output_4 | n/a |
|
| _anonymous_output_5 | _anonymous_output_5 | n/a |
|
| _anonymous_output_6 | _anonymous_output_6 | n/a |
|
| Busco on input dataset(s): short summary | Busco on input dataset(s): short summary | n/a |
|
| Merqury on input dataset(s): stats | Merqury on input dataset(s): stats | n/a |
|
| QV stats | QV stats | n/a |
|
| Merqury on input dataset(s): plots | Merqury on input dataset(s): plots | n/a |
|
| HyPo on input dataset(s): polished assembly | HyPo on input dataset(s): polished assembly | n/a |
|
| _anonymous_output_7 | _anonymous_output_7 | n/a |
|
| _anonymous_output_8 | _anonymous_output_8 | n/a |
|
| _anonymous_output_9 | _anonymous_output_9 | n/a |
|
| _anonymous_output_10 | _anonymous_output_10 | n/a |
|
| _anonymous_output_11 | _anonymous_output_11 | n/a |
|
| _anonymous_output_12 | _anonymous_output_12 | n/a |
|
| _anonymous_output_13 | _anonymous_output_13 | n/a |
|
| _anonymous_output_14 | _anonymous_output_14 | n/a |
|
Version History
Version 1 (earliest) Created 11th Mar 2024 at 14:45 by Diego De Panis
Initial commit
Open
master6edd32f
Creators and SubmitterViews: 2285 Downloads: 205 Runs: 0
Created: 11th Mar 2024 at 14:45
AttributionsNone
