kmer counting - meryl
Version 1

Workflow Type: Galaxy

Kmer counting step, can run alone or as part of a combined workflow for large genome assembly.

  • What it does: Estimates genome size and heterozygosity based on counts of kmers
  • Inputs: One set of short reads: e.g. R1.fq.gz
  • Outputs: GenomeScope graphs
  • Tools used: Meryl, GenomeScope
  • Input parameters: None required
  • Workflow steps: The tool meryl counts kmers in the input reads (k=21), then converts this into a histogram. GenomeScope: runs a model on the histogram; reports estimates. k-mer size set to 21.
  • Options: Use a different kmer counting tool. e.g. khmer.

Infrastructure_deployment_metadata: Galaxy Australia (Galaxy)

Inputs

ID Name Description Type
Illumina reads R1 Illumina reads R1 n/a
  • File

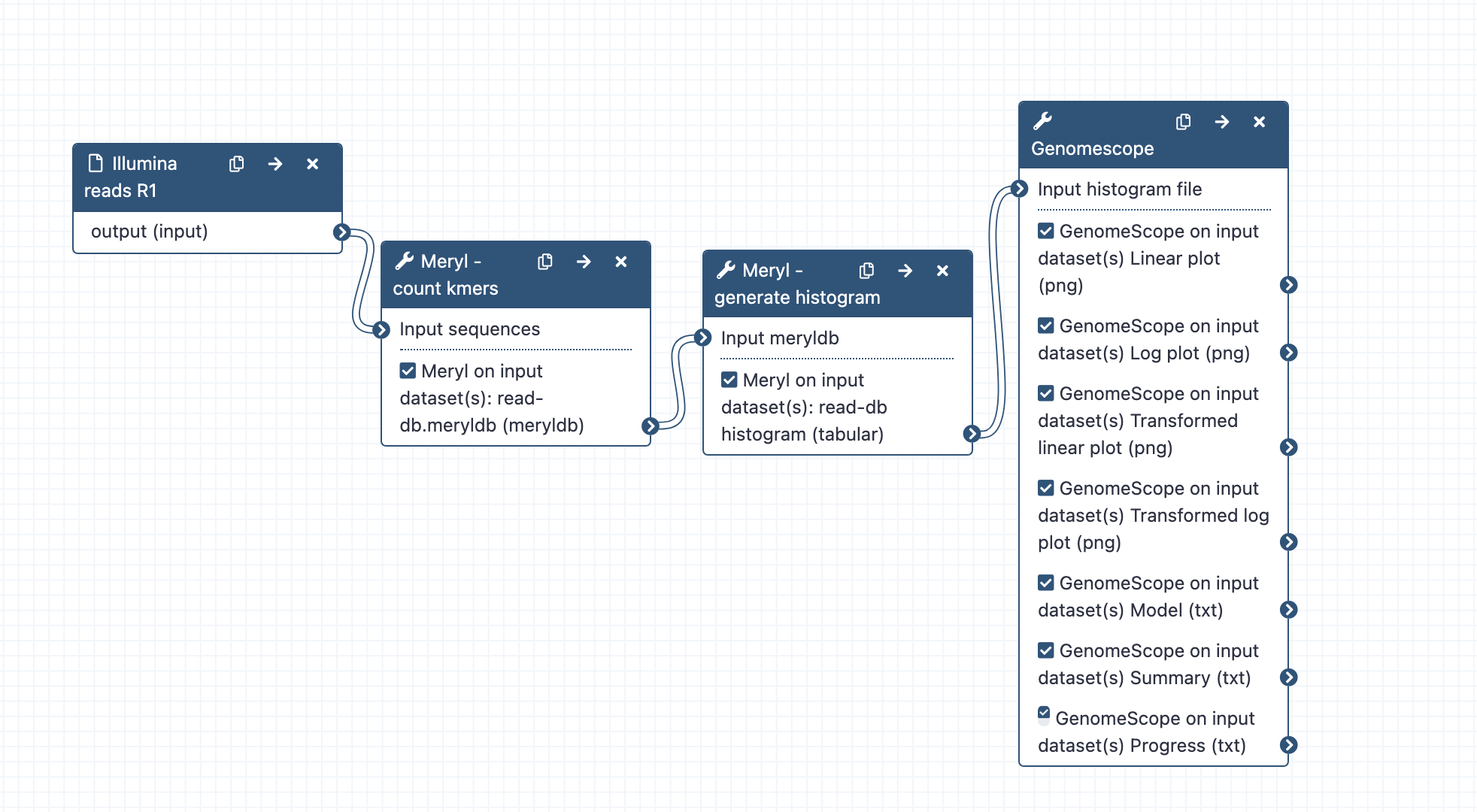

Steps

ID Name Description
1 Meryl - count kmers toolshed.g2.bx.psu.edu/repos/iuc/meryl/meryl/1.3+galaxy4
2 Meryl - generate histogram toolshed.g2.bx.psu.edu/repos/iuc/meryl/meryl/1.3+galaxy4
3 Genomescope toolshed.g2.bx.psu.edu/repos/iuc/genomescope/genomescope/2.0+galaxy1

Outputs

ID Name Description Type
Meryl on input dataset(s): read-db.meryldb Meryl on input dataset(s): read-db.meryldb n/a
  • File
_anonymous_output_1 _anonymous_output_1 n/a
  • File
_anonymous_output_2 _anonymous_output_2 n/a
  • File
_anonymous_output_3 _anonymous_output_3 n/a
  • File
_anonymous_output_4 _anonymous_output_4 n/a
  • File
GenomeScope on input dataset(s) Transformed log plot GenomeScope on input dataset(s) Transformed log plot n/a
  • File
GenomeScope on input dataset(s) Log plot GenomeScope on input dataset(s) Log plot n/a
  • File
GenomeScope on input dataset(s) Linear plot GenomeScope on input dataset(s) Linear plot n/a
  • File
GenomeScope on input dataset(s) Transformed linear plot GenomeScope on input dataset(s) Transformed linear plot n/a
  • File

Version History

Version 1 (earliest) Created 8th Nov 2021 at 04:47 by Anna Syme

Added/updated 2 files


Open master abe51c7
help Creators and Submitter
Creator
Submitter
Citation
Syme, A. (2021). kmer counting - meryl. WorkflowHub. https://doi.org/10.48546/WORKFLOWHUB.WORKFLOW.223.1
