Jupyter Notebook Protein Ligand Complex MD Setup tutorial

View on GitHub Download RO-Crate
Workflow Type: Unrecognized workflow type
Stable

Summary

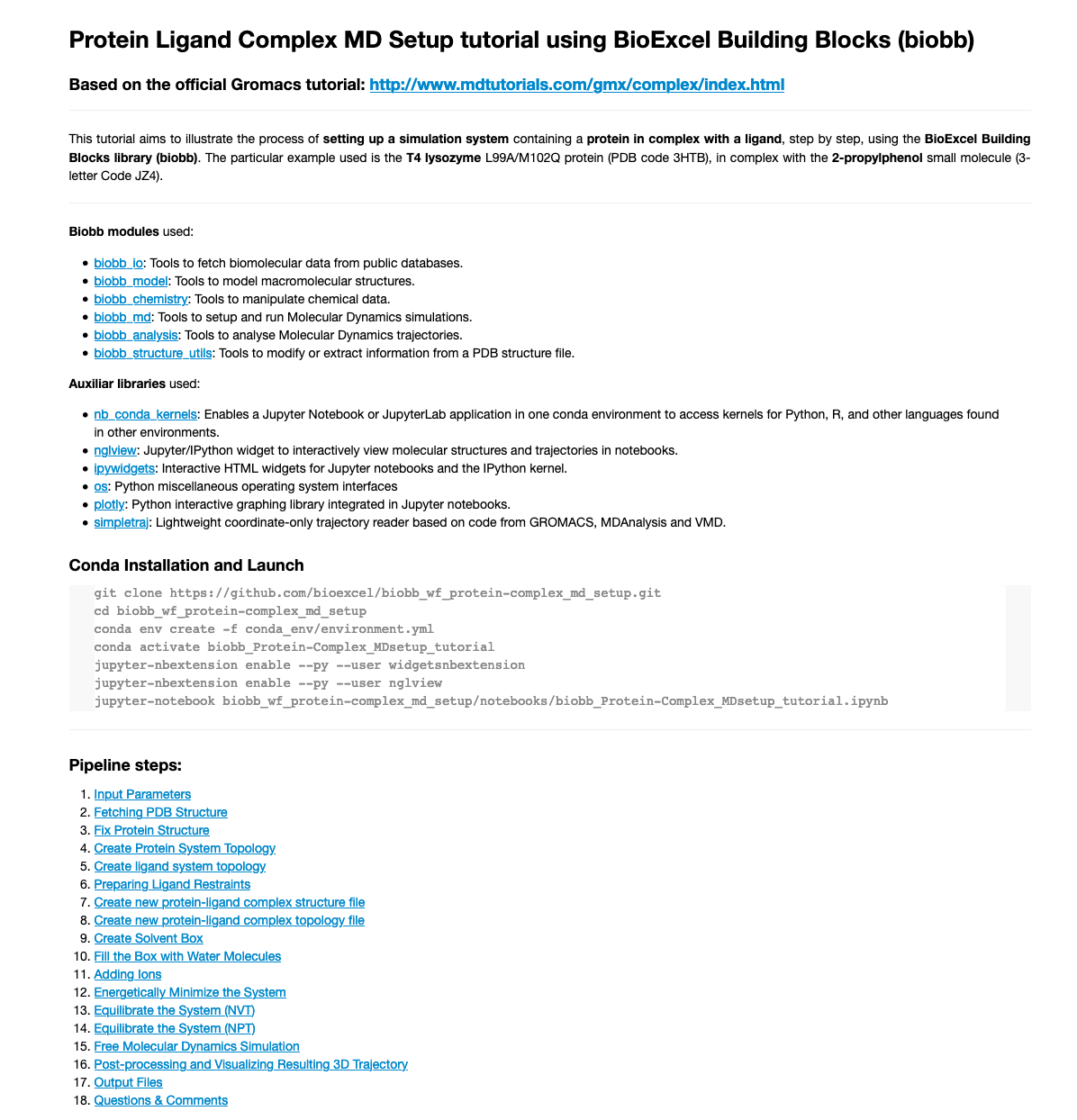

This tutorial aims to illustrate the process of setting up a simulation system containing a protein in complex with a ligand, step by step, using the BioExcel Building Blocks library (biobb). The particular example used is the T4 lysozyme L99A/M102Q protein (PDB code 3HTB), in complex with the 2-propylphenol small molecule (3-letter Code JZ4).

Workflow engine is a jupyter notebook. It can be run in binder, following the link given, or locally. Auxiliar libraries used are: nb_conda_kernels, nglview, ipywidgets, os, plotly, and simpletraj. Environment can be setup using the included environment.yml file.

Parameters

Inputs

Parameters needed to configure the workflow:

  • pdbCode: PDB code of the protein-ligand complex structure (e.g. 3HTB)

  • ligandCode: Small molecule 3-letter code for the ligand structure (e.g. JZ4)

  • mol_charge: Charge of the small molecule, needed to add hydrogen atoms.

Outputs

Output files generated (named according to the input parameters given above):

  • output_md_gro: final structure of the MD setup protocol

  • output_md_trr: final trajectory of the MD setup protocol

  • output_md_cpt: final checkpoint file

  • output_gppmd_tpr: final tpr file

  • output_genion_top_zip: final topology of the MD system

SEEK ID: https://workflowhub.eu/workflows/56?version=1

DOI: 10.48546/workflowhub.workflow.56.1

Version History

Version 7 (latest) Created 4th Mar 2024 at 14:23 by Genís Bayarri

Update to BioBB 4.1.*


Frozen Version-7 70dfb75

Version 6 Created 26th Jul 2023 at 10:21 by Genís Bayarri

Fixed importlib_metadata bug


Frozen Version-6 3b0b8b7

Version 5 Created 14th Apr 2023 at 09:04 by Genís Bayarri

Update to BioBB 4.0.*


Frozen Version-5 1a1f58d

Version 4 Created 15th Sep 2022 at 12:04 by Genís Bayarri

Update to BioBB 3.8.*. taken from Git commit 29a9ec9


Frozen Version-4 99d4200

Version 3 Created 2nd Jul 2021 at 09:43 by Douglas Lowe

Updated to BioBB 3.6.0. Taken from Git commit 513b6af


Frozen Version-3 9f15c63

Version 2 Created 6th May 2021 at 16:40 by Douglas Lowe

Updated for GROMACS 2020.4 and BioExcel Building Blocks version 3.5. Taken from Git commit 7e89a16


Frozen master 14efaa7

Version 1 (earliest) Created 22nd Sep 2020 at 16:30 by Douglas Lowe

Initial Upload. Taken from Git commit b4eee4f


Frozen master 877b1b7
help Creators and Submitter
Creators
Submitter
Discussion Channels
BioExcel Workflows
Tutorial
Documentation
Launch on MyBinder
Launch on Colab
Citation
Lowe, D., & Bayarri, G. (2021). Protein Ligand Complex MD Setup tutorial using BioExcel Building Blocks (biobb) (jupyter notebook). WorkflowHub. https://doi.org/10.48546/WORKFLOWHUB.WORKFLOW.56.1
License
Apache License 2.0
