Workflow Type: Galaxy
Frozen
Stable

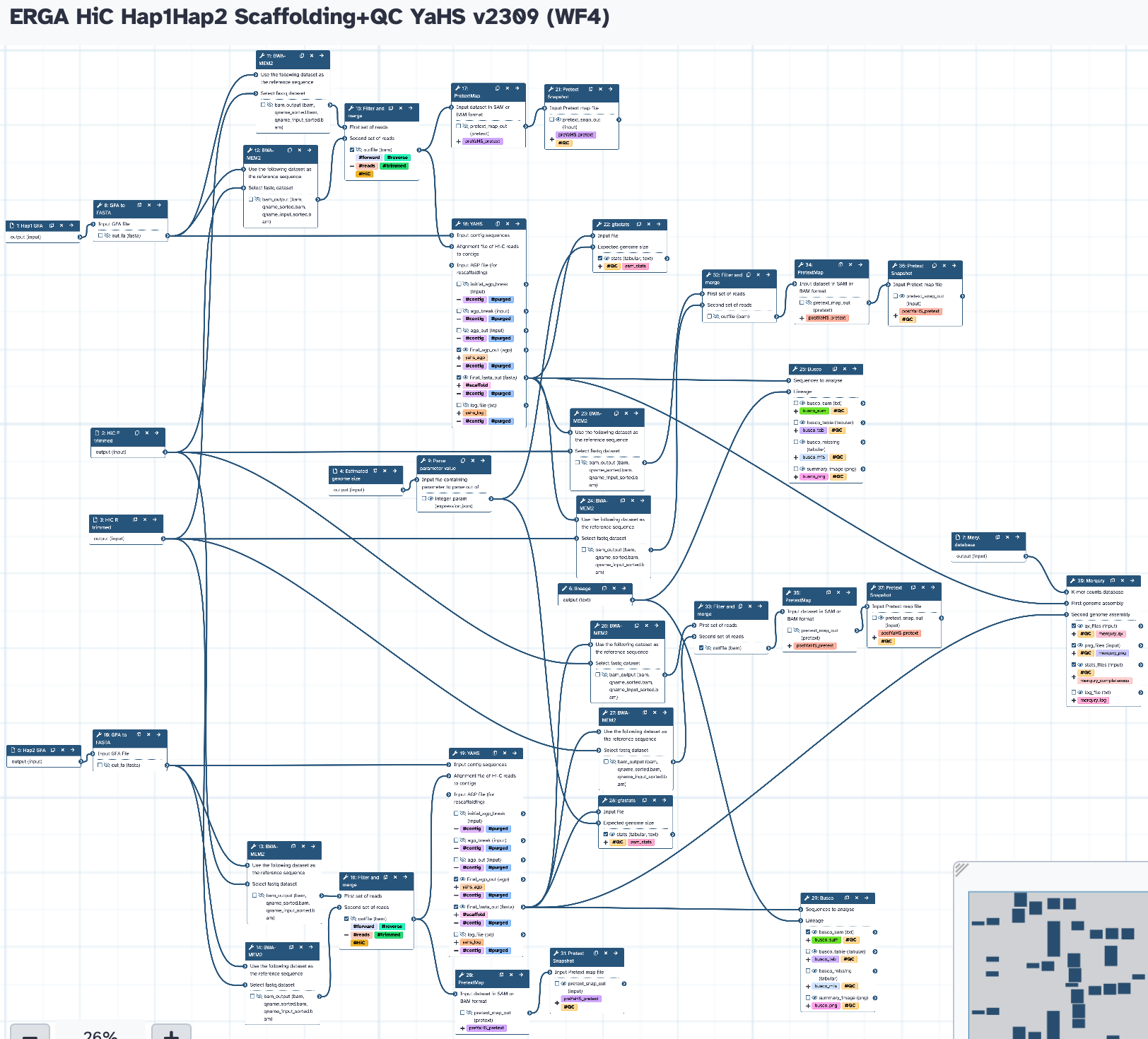

The workflow takes trimmed HiC forward and reverse reads, and Hap1/Hap2 assemblies to produce Hap1 and Hap2 scaffolded assemblies using YaHS. It also runs all the QC analyses (gfastats, BUSCO, Merqury and Pretext).
Inputs
ID | Name | Description | Type |
---|---|---|---|
Estimated genome size | Estimated genome size | n/a |
|
Hap1 GFA | Hap1 GFA | gfa assembly file to scaffold |
|
Hap2 GFA | Hap2 GFA | gfa assembly file to scaffold |
|
HiC F trimmed | HiC F trimmed | HiC forward reads (already trimmed) |
|
HiC R trimmed | HiC R trimmed | HiC reverse reads (already trimmed) |
|
Meryl database | Meryl database | n/a |
|
lineage | lineage | lineage for BUSCO, e.g.: arthropoda_odb10, vertebrata_odb10, mammalia_odb10, aves_odb10, tetrapoda_odb10 ... |
|
Steps
ID | Name | Description |
---|---|---|
7 | GFA to FASTA | toolshed.g2.bx.psu.edu/repos/iuc/gfa_to_fa/gfa_to_fa/0.1.2 |
8 | Parse parameter value | param_value_from_file |
9 | GFA to FASTA | toolshed.g2.bx.psu.edu/repos/iuc/gfa_to_fa/gfa_to_fa/0.1.2 |
10 | BWA-MEM2 | toolshed.g2.bx.psu.edu/repos/iuc/bwa_mem2/bwa_mem2/2.2.1+galaxy1 |
11 | BWA-MEM2 | toolshed.g2.bx.psu.edu/repos/iuc/bwa_mem2/bwa_mem2/2.2.1+galaxy1 |
12 | BWA-MEM2 | toolshed.g2.bx.psu.edu/repos/iuc/bwa_mem2/bwa_mem2/2.2.1+galaxy1 |
13 | BWA-MEM2 | toolshed.g2.bx.psu.edu/repos/iuc/bwa_mem2/bwa_mem2/2.2.1+galaxy1 |
14 | Filter and merge | toolshed.g2.bx.psu.edu/repos/iuc/bellerophon/bellerophon/1.0+galaxy1 |
15 | Filter and merge | toolshed.g2.bx.psu.edu/repos/iuc/bellerophon/bellerophon/1.0+galaxy1 |
16 | PretextMap | toolshed.g2.bx.psu.edu/repos/iuc/pretext_map/pretext_map/0.1.9+galaxy0 |
17 | YAHS | toolshed.g2.bx.psu.edu/repos/iuc/yahs/yahs/1.2a.2+galaxy1 |
18 | YAHS | toolshed.g2.bx.psu.edu/repos/iuc/yahs/yahs/1.2a.2+galaxy1 |
19 | PretextMap | toolshed.g2.bx.psu.edu/repos/iuc/pretext_map/pretext_map/0.1.9+galaxy0 |
20 | Pretext Snapshot | toolshed.g2.bx.psu.edu/repos/iuc/pretext_snapshot/pretext_snapshot/0.0.3+galaxy1 |
21 | gfastats | toolshed.g2.bx.psu.edu/repos/bgruening/gfastats/gfastats/1.3.6+galaxy0 |
22 | BWA-MEM2 | toolshed.g2.bx.psu.edu/repos/iuc/bwa_mem2/bwa_mem2/2.2.1+galaxy1 |
23 | BWA-MEM2 | toolshed.g2.bx.psu.edu/repos/iuc/bwa_mem2/bwa_mem2/2.2.1+galaxy1 |
24 | Busco | toolshed.g2.bx.psu.edu/repos/iuc/busco/busco/5.4.6+galaxy0 |
25 | BWA-MEM2 | toolshed.g2.bx.psu.edu/repos/iuc/bwa_mem2/bwa_mem2/2.2.1+galaxy1 |
26 | BWA-MEM2 | toolshed.g2.bx.psu.edu/repos/iuc/bwa_mem2/bwa_mem2/2.2.1+galaxy1 |
27 | gfastats | toolshed.g2.bx.psu.edu/repos/bgruening/gfastats/gfastats/1.3.6+galaxy0 |
28 | Busco | toolshed.g2.bx.psu.edu/repos/iuc/busco/busco/5.4.6+galaxy0 |
29 | Merqury | toolshed.g2.bx.psu.edu/repos/iuc/merqury/merqury/1.3+galaxy3 |
30 | Pretext Snapshot | toolshed.g2.bx.psu.edu/repos/iuc/pretext_snapshot/pretext_snapshot/0.0.3+galaxy1 |
31 | Filter and merge | toolshed.g2.bx.psu.edu/repos/iuc/bellerophon/bellerophon/1.0+galaxy1 |
32 | Filter and merge | toolshed.g2.bx.psu.edu/repos/iuc/bellerophon/bellerophon/1.0+galaxy1 |
33 | PretextMap | toolshed.g2.bx.psu.edu/repos/iuc/pretext_map/pretext_map/0.1.9+galaxy0 |
34 | PretextMap | toolshed.g2.bx.psu.edu/repos/iuc/pretext_map/pretext_map/0.1.9+galaxy0 |
35 | Pretext Snapshot | toolshed.g2.bx.psu.edu/repos/iuc/pretext_snapshot/pretext_snapshot/0.0.3+galaxy1 |
36 | Pretext Snapshot | toolshed.g2.bx.psu.edu/repos/iuc/pretext_snapshot/pretext_snapshot/0.0.3+galaxy1 |
Outputs
ID | Name | Description | Type |
---|---|---|---|
_anonymous_output_1 | _anonymous_output_1 | n/a |
|
_anonymous_output_2 | _anonymous_output_2 | n/a |
|
_anonymous_output_3 | _anonymous_output_3 | n/a |
|
_anonymous_output_4 | _anonymous_output_4 | n/a |
|
_anonymous_output_5 | _anonymous_output_5 | n/a |
|
_anonymous_output_6 | _anonymous_output_6 | n/a |
|
_anonymous_output_7 | _anonymous_output_7 | n/a |
|
_anonymous_output_8 | _anonymous_output_8 | n/a |
|
_anonymous_output_9 | _anonymous_output_9 | n/a |
|
_anonymous_output_10 | _anonymous_output_10 | n/a |
|
_anonymous_output_11 | _anonymous_output_11 | n/a |
|
_anonymous_output_12 | _anonymous_output_12 | n/a |
|
_anonymous_output_13 | _anonymous_output_13 | n/a |
|
Version History
Version 1 (earliest) Created 11th Oct 2023 at 16:06 by Diego De Panis
Initial commit
Frozen
Version-1
f14e012
Creators and Submitter
Creator
Additional credit
ERGA
Submitter
Citation
De Panis, D. (2024). ERGA HiC Hap1Hap2 Scaffolding+QC YaHS v2309 (WF4). WorkflowHub. https://doi.org/10.48546/WORKFLOWHUB.WORKFLOW.608.1
