Workflow 2D relion (tilted experiments variation) Version 1

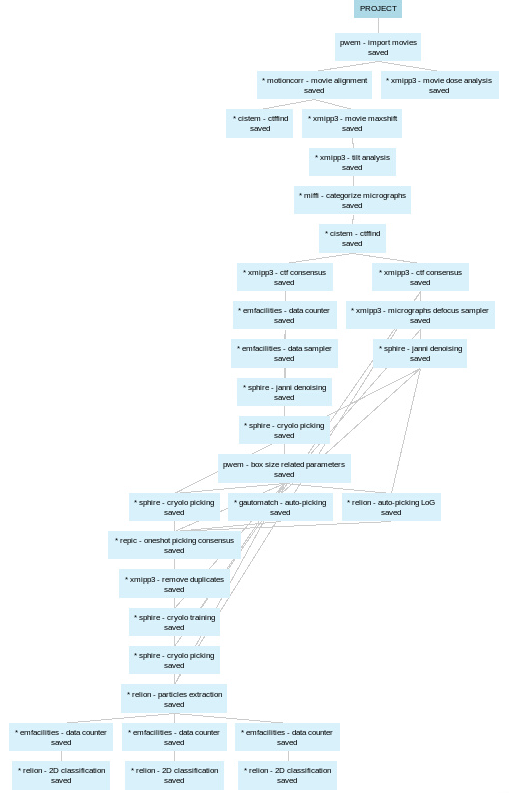

Download RO-CrateAutomated image processing from movies to 2D classes. Includes CTF estimation, quality filters, box size estimation, training a data-specific picking model, and three 2D classification jobs (25k, 50k, and 100k particles) using Relion.
Adapting to Tilted Samples
To process tilted experiments, use ”tilted” templates. These are modified workflows tailored to handle high drift and lower resolution commonly observed in tilted samples. Key adjustments include:
-
Motion Correction Filters: Max per-frame shift = 30; Global drift = 120.
-
CTF Consensus Filters: Adapted to 6.5 Å and 8.5 Å resolution cutoffs.
-
Defocus Sampler: Trains with 500 images to select 25 diverse examples, ensuring a generalizable picking model.
Version History
Version 1 (earliest) Created 24th Jun 2025 at 11:28 by Daniel Marchan
Initial commit
Open
master76e12d4
Creators and Submitter
Views: 655 Downloads: 148
Created: 24th Jun 2025 at 11:28
TagsThis item has not yet been tagged.
AttributionsNone
Collections
CryoEM Facility Wor...
Related items
https://orcid.org/0000-0002-1442-3544
A space managed by WorkflowHub administrators for teams that don't want/need to manage their own space.
Teams: IBISBA Workflows, NMR Workflow, UNLOCK, NanoGalaxy, Galaxy Climate, PNDB, IMBforge, COVID-19 PubSeq: Public SARS-CoV-2 Sequence Resource, LBI-RUD, Nick-test-team, Italy-Covid-data-Portal, UX trial team, Integrated and Urban Plant Pathology Laboratory, SARS-CoV-2 Data Hubs, lmjxteam2, virAnnot pipeline, Ay Lab, iPC: individualizedPaediatricCure, Harkany Lab, MOLGENIS, EJPRD WP13 case-studies workflows, Common Workflow Language (CWL) community, Testing, SeBiMER, IAA-CSIC, MAB - ATGC, Probabilistic graphical models, GenX, Snakemake-Workflows, ODA, IPK BIT, CO2MICS Lab, FAME, CHU Limoges - UF9481 Bioinformatique / CNR Herpesvirus, Quadram Institute Bioscience - Bioinformatics, HecatombDevelopment, Institute of Human Genetics, Testing RO Crates, Test Team, Applied Computational Biology at IEG/HMGU, INFRAFRONTIER workflows, OME, TransBioNet, OpenEBench, Bioinformatics and Biostatistics (BIO2 ) Core, VIB Bioinformatics Core, CRC Cohort, ICAN, MustafaVoh, Single Cell Unit, CO-Graph, emo-bon, TestEMBL-EBIOntology, CINECA, Toxicology community, Pitagora-Network, Workflows Australia, Medizinisches Proteom-Center, Medical Bioinformatics, AGRF BIO, EU-Openscreen, X-omics, ELIXIR Belgium, URGI, Size Inc, GA-VirReport Team, The Boucher Lab, Air Quality Prediction, pyiron, CAPSID, Edinburgh Genomics, Defragmentation TS, NBIS, Phytoplankton Analysis, Seq4AMR, Workflow registry test, Read2Map, SKM3, ParslRNA-Seq: an efficient and scalable RNAseq analysis workflow for studies of differentiated gene expression, de.NBI Cloud, Meta-NanoSim, ILVO Plant Health, EMERGEN-BIOINFO, KircherLab, Apis-wings, BCCM_ULC, Dessimoz Lab, TRON gGmbH, GEMS at MLZ, Computational Science at HZDR, Big data in biomedicine, TRE-FX, MISTIC, Guigó lab, Statistical genetics, Delineating Regions-of-interest for Mass Spectrometry Imaging by Multimodally Corroborated Spatial Segmentation, OLCF-WES, Bioinformatics Unit @ CRG, Bioinformatics Innovation Lab, BSC-CES, ELIXIR Proteomics, Black Ochre Data Labs, Zavolan Lab, Metabolomics-Reproducibility, Team Cardio, NGFF Tools, Bioinformatics workflows for life science, Workflows for geographic science, Pacific-deep-sea-sponges-microbiome, CSFG, SNAKE, Katdetectr, INFRAFRONTIER GmbH, PerMedCoE, Euro-BioImaging, EOSC-Life WP3 OC Team, cross RI project, ANSES-Ploufragan, SANBI Pathogen Bioinformatics, Biodata Analysis Group, DeSci Labs, Erasmus MC - Viroscience Bioinformatics, ARA-dev, Mendel Centre for Plant Genomics and Proteomics, Metagenomic tools, WorkflowEng, Polygenic Score Catalog, bpm, scNTImpute, Systems Biotechnology laboratory, Cimorgh IT solutions, MLme: Machine Learning Made Easy, Hurwitz Lab, Dioscuri TDA, Scipion CNB, System Biotechnology laboratory, yPublish - Bioinfo tools, NIH CFDE Playbook Workflow Partnership, MMV-Lab, EMBL-Bioimage Analysis Support, EBP-Nor, Evaluation of Swin Transformer and knowledge transfer for denoising of super-resolution structured illumination microscopy data, Bioinformatics Laboratory for Genomics and Biodiversity (LBGB), multi-analysis dFC, CholGen, RNA group, Plant Genomes Pipelines in Galaxy, Pathogen Genomic Laboratory, Chemical Data Lab, JiangLab, Pangenome database project, HP2NET - Framework for construction of phylogenetic networks on High Performance Computing (HPC) environment, Center for Open Bioimage Analysis, Generalized Open-Source Workflows for Atomistic Molecular Dynamics Simulations of Viral Helicases, Historical DNA genome skimming, QCDIS, Peter Menzel's Team, NHM Clark group, ESRF Workflow System (Ewoks), Kalbe Bioinformatics, Nextflow4Metabolomics, GBCS, CEMCOF, Jackson Laboratory NGS-Ops, Schwartz Lab, BRAIN - Biomedical Research on Adult Intracranial Neoplasms, Cancer Therapeutics and Drug Safety, Deepdefense, Mid-Ohio Regional Planning Commission, MGSSB, Institute for Human Genetics and Genomic Medicine Aachen, FengTaoSMU, EGA, Plant-Food-Research-Open, KrauthammerLab, Geo Workflows, grassland pDT, FunGIALab, CRIM - Computer Research Institute of Montréal, Medvedeva Lab, Metagenlab, FAIR-EASE, Protein-protein and protein-nucleic acid binding site prediction research, Culhane Lab, IDUN - Drug Delivery and Sensing, Edge Computing DAG Task Scheduling Research Group, Stratum corneum nanotexture feature detection using deep learning and spatial analysis: a non-invasive tool for skin barrier assessment, COPO, Taudière group, ErasmusMC Clinical Bioinformatics, interTwin, fluid flow modeling, EnrichDO, WorkflowResearch, Application Security - Test Crypt4GH solutions, RenLabBioinformatics, Yongxin's team, PiFlow, HLee_SeoGroup, UFZ - Image Data Management and Processing Workflows, Korean Bioinformaticians, Into the deep, XChem, CPM, SocialGene, Research Data Management ICE-2, ObjectRecognition, LiDAR, FONDA II C2, Astroparticle Lab, FAIRagro M4.4, Kgerring, QuackenbushLab, Virus sequencing team, SOS, BioImage Informatics and Analysis Workflows, BoostNano, simblockflow, CSSB, Research on Workflow scheduling, Research Data1, CSUbioinformatics, CDPP, Mr., ASD-HRS, data management, FAIR_thesis: Marine acoustic data, CellBinDB, DEEP Lab, University of Amsterdam, SIMEXP, nf-pediatric Team, Kasmanas, Structural Variation Analysis, fuzzyworkflow, CausalCoxMGM Team, Tufts University Center for Cellular Agriculture (TUCCA), Test, CrustyBase, Applied Computational Cancer Research, Click-qPCR, BAID Team, FabianLab, Vector informatics and genomics group, AlmondBreedingLab, Artificial Design for Intelligent Breeding, ELIXIR Biodiversity Community, GROTIA, Biomedical_LLM, WhiteSymmetry, Hämatologie Labor Kiel, pakbaba, Metagenomics Analysis, MTB Bioinformatics Workflows, RTC Bioinformatics, CMG-GUTS, EI Papatheodorou Group, Metagenomics Analysis of Microbiome, ColoPola: A polarimetric imaging dataset for colorectal cancer detection, AI in Zhou Lab, CEPLAS, LTER-Italy, Gevaert Lab, Kendall-Theisen lab pipelines, High Performance Scientific Computing Laboratory (HPSC), Ensembl Metazoa and Plants, BiRD, Q-Dawn, AMRMALDI, Systems and Synthetic Biology, EI Core Bioinformatics Group, Values Shape Community, SolutionMake, GENEX, iPol, zxfenglab, Bioinformatics Unit IIS-FJD, omnibenchmark, BioX Fanatics, Li-Omics Lab, Metro Team, ZiemertLab, Song Lab, PanGIA, Holobionts Workflows, An Ideal Design for RNA-seq investigations into RPL, AMI2B Team, Institute for Hearing Technology and Acoustics (IHTA), Transcriptomics in unexplained recurrent pregnancy loss, E-MOBI / EKONOMIK MOBIL,S.R.L, Workflow Run Crate working group, datafun, BioFAIR
Web page: Not specified
Scipion team located at the National Centre for Biotechnology (CNB, CSIC)
Space: Independent Teams
Public web page: https://scipion.i2pc.es/
This document provides guidance for understanding and implementing the set of workflows included in this collection. It outlines best practices and recommendations to ensure successful setup and execution of automated and real-time image processing pipelines.
Creator: Daniel Marchan
Submitter: Daniel Marchan
Download
A collection of image processing templates designed to support data collection and automated processing for Single Particle Analysis (SPA) in cryo-electron microscopy. The workflows range from simple pipelines—including movie alignment, CTF estimation, and quality assessment—to fully automated 2D and 3D processing. Please select the workflow that best suits your needs.
